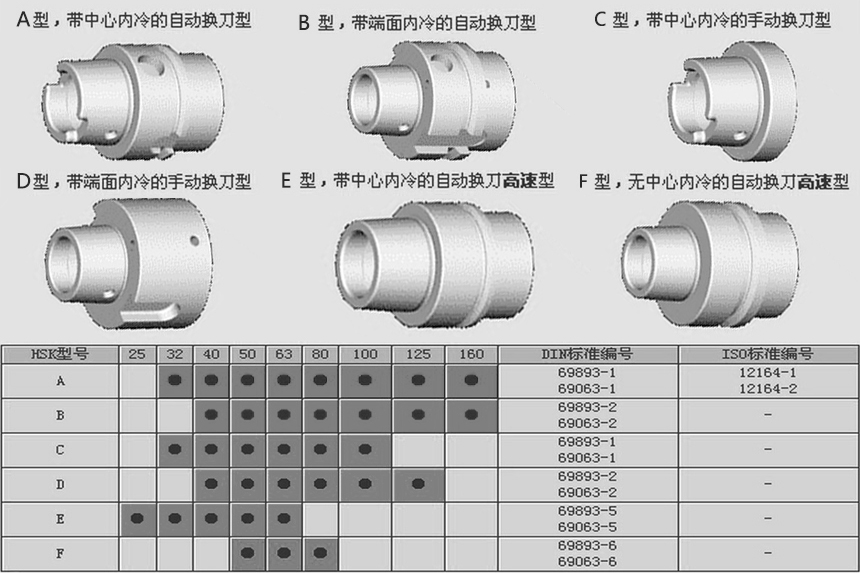

The HSK (Hollow Shank Taper) tool holder, standardized under DIN 69873, is a high-performance tool-holding system used in CNC machining centers. It comes in six variants (HSK-A to HSK-F), with HSK-A, HSK-E, and HSK-F being the most common for automatic tool changers (ATC).

Why HSK Outperforms 7:24 Taper Holders

Dual-Contact System: Combines 1:10 taper + flange face clamping for better rigidity & accuracy.

Higher Speeds: Resists centrifugal loosening, ideal for high-speed machining (40,000+ RPM).

Improved Repeatability: Ensures consistent tool positioning in precision applications.

HSK-A vs. HSK-E: Key Differences

Feature HSK-A HSK-E

Drive Slots Yes No

Torque High Low

Best For Heavy Cutting High-Speed Finishing

Balance Moderate Excellent

HSK-E vs. HSK-F: Speed Advantage

HSK-F has a smaller taper (e.g., F63 ≈ E50 taper size) → Higher RPM capability.

Applications:

Aerospace (titanium machining)

Mold & Die (high-precision cavities)

Automotive (high-volume production)

Best Practices:

✔ Use HSK-A for heavy milling

✔ Choose HSK-E/F for high-speed operations

✔ Optimize clamping force for maximum tool life
