Choosing the wrong cutter can make machining costs jump over 40%. Let's compare carbide and diamond and see how they perform in industrial machining.

Testing shows PCD diamond tools last 80 times longer than carbide when working with abrasive composites like CFRP. This article gives detailed test data, tips to avoid problems, and a return on investment calculator.

What is the Difference Between Carbide and Diamond Tools?

The main difference between carbide and diamond tools is their molecular hardness and chemical compatibility. Carbide (Tungsten Carbide) is a metallic compound known for its fracture toughness, making it ideal for cutting steel. Diamond (PCD) is a carbon crystal structure that offers the highest known wear resistance but reacts chemically with iron-based metals.

Is PCD the same as a diamond?

Simply put, yes, but it's a stronger version made for industry. The diamond tools people often talk about are actually PCD (Polycrystalline Diamond). It's not a whole, natural diamond, but countless tiny diamond crystals are welded to a hard alloy base by high pressure.

Defining Tungsten Carbide

Tungsten carbide is a strong metal mix of tungsten and carbon held together by cobalt. It's known for being tough and not easy to break, making it great for cutting steel, cast iron, and hard alloys.

Defining Diamond (PCD)

Industrial diamond tools, often made of polycrystalline diamond (PCD), are carbon crystals formed under high pressure. They have a perfect 10 on the Mohs hardness scale. For working with non-ferrous materials, they last 50-100 times longer than carbide tools.

Carbide vs Diamond Drill Bits: High-Precision Performance

When picking between carbide and diamond drill bits, feed rates and heat control are super important.

Feed Rate and RPM Control

Carbide bits are great at resisting bending when you're drilling deep holes because they can handle a lot of axial force. But, when working with aluminum, it's a good idea to keep the feed rate between 0.1mm and 0.3mm per revolution. This keeps things efficient while still getting a smooth finish.

Heat Control

Diamond bits move heat away from the cutting edge much faster than carbide bits—about five times faster, actually. This is really important when you're working with composite materials. It helps stop heat damage or separation of layers in the hole walls.

What is a Carbide Cutter Blade Best Used For?

Don't let the high cost of diamonds scare you off. For industrial cutting，Carbide cutter blades are still the real boss. Think of diamonds as scalpels，while carbide is like a tough knife that can chop wood，slice meat，and defend you.

The King of Interrupted Cutting

The biggest problem with diamonds is that they're fragile. If the material you're working on isn't smooth，or if you need to do interrupted cutting，like on shafts with keyways or the surface of castings，diamond edges will chip easily. To be honest: Carbide has great fracture toughness. It can handle thousands of heavy impacts per minute without breaking. Diamonds can't do that.

Heat Protection and Coatings

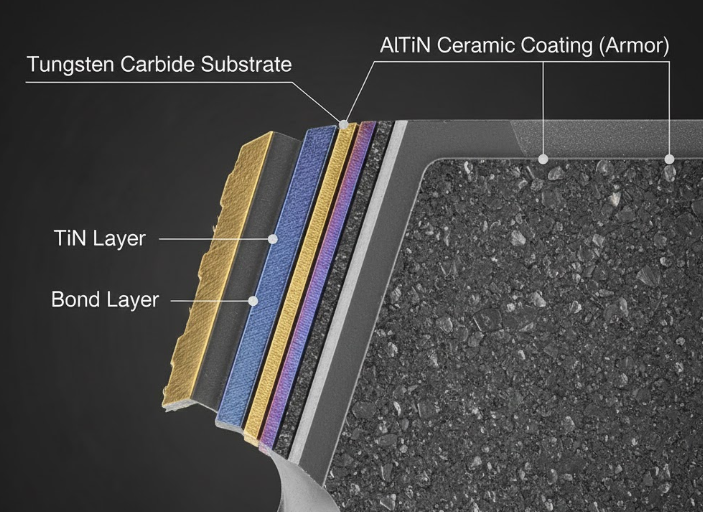

We talked about how diamonds don't like iron. This is where Carbide shines. Here's the tech side: Modern carbide inserts have an AlTiN coating， which creates a heat shield. Even in dry cutting at 800°C， this coating keeps heat out of the material.

• For stainless steel: Go with Carbide.

• For high-nickel alloys: Go with Carbide.

• For mold steel: Go with Carbide.

Why Carbide is the Safety Net for Small Batches

If you're not running hundreds of thousands of parts on an automated line，carbide is your safety net. It's not as demanding on machine rigidity. Even if your old machine vibrates a bit，carbide’s toughness can handle it without failing like a diamond might.

What Are Diamond Saw Blades Used For?

Diamond saw blades don't cut things in the usual way. Instead, they grind materials down at high speed. Think of them as super-powered grinders.

Main uses

Diamond saw blades are great for working with really abrasive stuff like granite, ceramics, glass, and asphalt. They also do a great job cutting carbon fiber or high-silicon aluminum alloys, preventing splintering and keeping edges clean.

How they stay sharp

Diamond saw blades stay sharp because the metal around the diamonds wears away at the same rate as the diamonds. When the diamonds on the surface get dull, the metal wears down too, exposing new, sharp diamonds underneath. This is how they can keep cutting consistently.

How Much Is a Diamond Blade vs. Carbide?

When figuring out how much a diamond blade costs, don't just look at the price tag. You need to think about the cost per cut.

Price vs. Value

In 2026, a standard sized carbide blade usually costs between $20 and $100. On the other hand, a diamond blade of same size might start at $150 and go up to $500. It costs up to 5 times more at first, but it also lasts 30 to 100 times longer.

ROI and Breakeven Point

If you're doing a lot of production, you save money in the long run by not having to stop to change blades as often. For instance, if your production line costs $500 per hour to run, and you have to swap out your carbide blade every 2 hours, but a diamond blade runs for 100 hours straight, you actually make your money back on the diamond tool after just 10 hours.

Industry Pitfalls: Expert Tips to Avoid Tool Failure

Even with top-notch carbide versusdiamond tools, wrong settings can ruin your investment in seconds.

The Ferrous Trap

Never use diamond tools on steel, cast iron, or nickel alloys. At high-speed cutting temperatures, carbon atoms in diamonds like to bond with iron, causing a carbide reaction. This makes diamond blades dissolve fast and lose hardness, even faster than regular carbide.

Stiffness and Vibration Control

Because diamonds are so brittle, they need very stiff machines. Even small vibrations can chip the blade. If your machine is old or your setup isn't very stiff, it's safer and cheaper to use a tougher carbide cutter blade.

Coolant Pressure and Mix

When working with abrasive stuff, coolant does more than just cool things down; it also washes away debris. If the pressure isn't high enough, debris can grind against the blade, making the diamond particles fall off faster. Keep the coolant mix at 5%-8% and point the nozzle right at the cutting spot.

Conclusion: Which One Should You Choose?

Choosing between carbide and diamond depends on balancing precision, material hardness, and production scale.

If you're working with lots of non-ferrous metal parts, investing in diamond tools can really cut down the cost per part. But if you're dealing with various steel parts in small batches, high-performance carbides are still the way to go.

Ready to Upgrade Your Cutting Performance?

Choosing between carbide and diamond tools doesn't have to be hard. The key is picking the right tools to make your production more efficient.

Whether you need strong carbide cutter blades for machining tough steel parts or diamond tools with a long lifespan, Jimmytool has tried-and-tested industrial solutions for you. We offer tools and also help you cut machining costs by improving cutting settings.

Frequently Asked Questions (FAQ)

Can you use a diamond blade to cut steel?

I wouldn't suggest that. The carbon atoms in diamonds can dissolve into iron at the high temperatures created by high-speed cutting (it's a chemical thing), which causes the cutting edge to wear down fast. Carbide cutter blades are still the steadier and cheaper option for cutting steel.

Is diamond harder than carbide?

That's right. Diamonds are the hardest stuff we know of right now. They score a 10 on the Mohs scale, and their Vickers hardness (HV) goes over 8000. Good hard alloys, on the other hand, are around 9 on the Mohs scale, with a Vickers hardness between 1600 and 2500. So, diamonds can withstand wear and tear much better than hard alloys.

Which lasts longer, carbide or diamond drill bits?

The lifespan depends on what you're drilling. Diamond drill bits usually last 50 to 100 times longer than carbide bits when working with materials like ceramics, glass, or carbon fiber. But for hardened steel or interrupted cuts, carbide bits often hold up better because they're tougher and less prone to chipping.

Why is diamond tooling so much more expensive?

The price of diamond tools is high because they're hard to make. Polycrystalline diamond (PCD) needs extreme pressure and heat to form. Then, special electrical discharge machining (EDM) or laser tools are needed to grind them. Though each tool costs a lot, they last a very long time, which usually lowers total production costs in the end.

How do I know when to switch from carbide to diamond?

If your production line struggles with frequent tool changes (costly downtime) or very abrasive materials (like high-silicon aluminum), now might be the right time to switch to diamond tools. Usually, diamond tooling offers a better return on investment than carbides when dealing with non-ferrous metals and production runs go above 1,000 parts.
