Face Milling Cutters: The Ultimate Guide to Surface Perfection and Maximum Productivity

Introduction: The Foundation of Precision Machining

Face milling is often the first and most critical operation in machining a part. It establishes the foundational flatness, parallelism, and surface quality that every subsequent feature depends upon. Unlike peripheral milling, where cutting occurs primarily on the tool's circumference, face milling engages both the face and periphery of the cutter to create wide, flat surfaces with exceptional efficiency.

The choice of face milling cutter directly impacts:

• Surface finish quality (Ra, Rz values)

• Flatness and parallelism tolerances

• Material removal rates (MRR)

• Production cycle times

• Overall machining costs

This comprehensive guide will transform you from a casual user to a strategic expert in face milling cutter selection, application, and optimization.

Chapter 1: The Anatomy of Modern Face Milling Cutters

1.1 Core Components and Their Functions

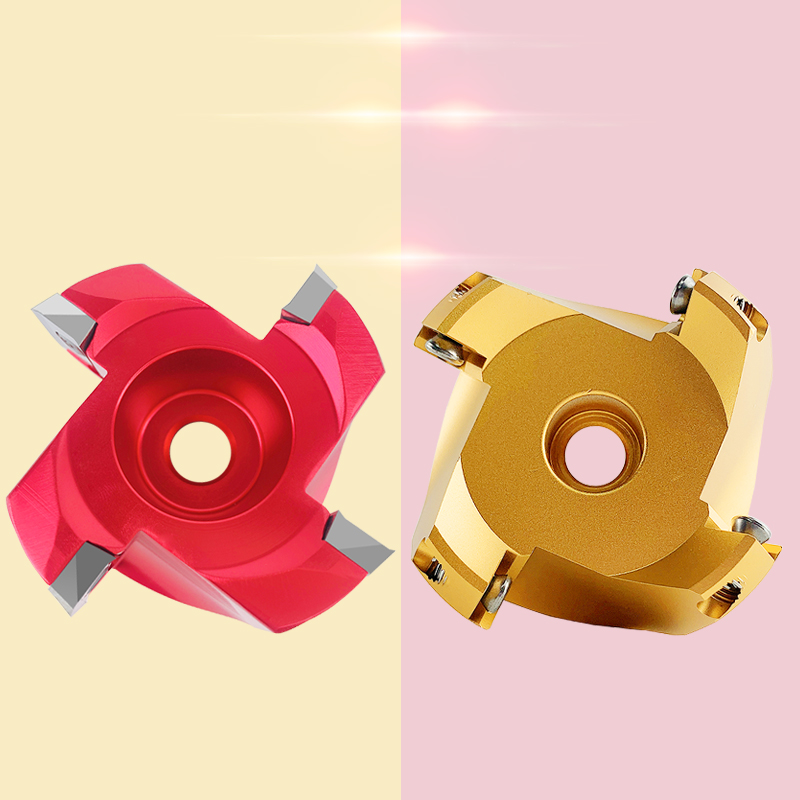

Cutter Body:

• Material: Typically steel or heavy-duty steel alloys

• Interface: CAT, BT, HSK, or CAPTO shanks

• Key Feature: Precision-machined pocket locations that determine insert positioning accuracy

Cutting Inserts:

• Geometry: Square, round, octagonal, or trigon shapes

• Cutting Edges: 4-8 usable edges per insert

• Mounting: Screw-clamp, wedge-lock, or pin-lock systems

Cutting Geometry Elements:

• Lead Angle (κ): Most critical parameter (typically 45°, 75°, or 90°)

• Axial Rake Angle (γₐ): Controls cutting forces and chip flow

• Radial Rake Angle (γᵣ): Affects power consumption and surface finish

1.2 The Physics of Face Milling: Why Design Matters

Face milling generates a unique chip formation pattern:

Entry → Full Engagement → Exit
Thin Chip → Maximum Thickness → Thin Chip

This varying chip thickness affects:

1. Cutting Forces: Peak during maximum engagement

2. Heat Generation: Concentrated at insert center

3. Tool Life: Entry and exit cause maximum edge stress

Pro Insight: The "lead angle" is your primary control lever. A 45° lead angle distributes forces axially and radially, while 90° creates purely axial forces—critical for thin-walled components.

Chapter 2: Face Milling Cutter Classification System

2.1 By Insert Size and Cutter Diameter

2.2 By Cutting Edge Geometry

Square Inserts (90° corner):

• Most common, economical

• 8 cutting edges typically

• Medium to heavy cutting conditions

• Limitation: Sharp corner susceptible to chipping

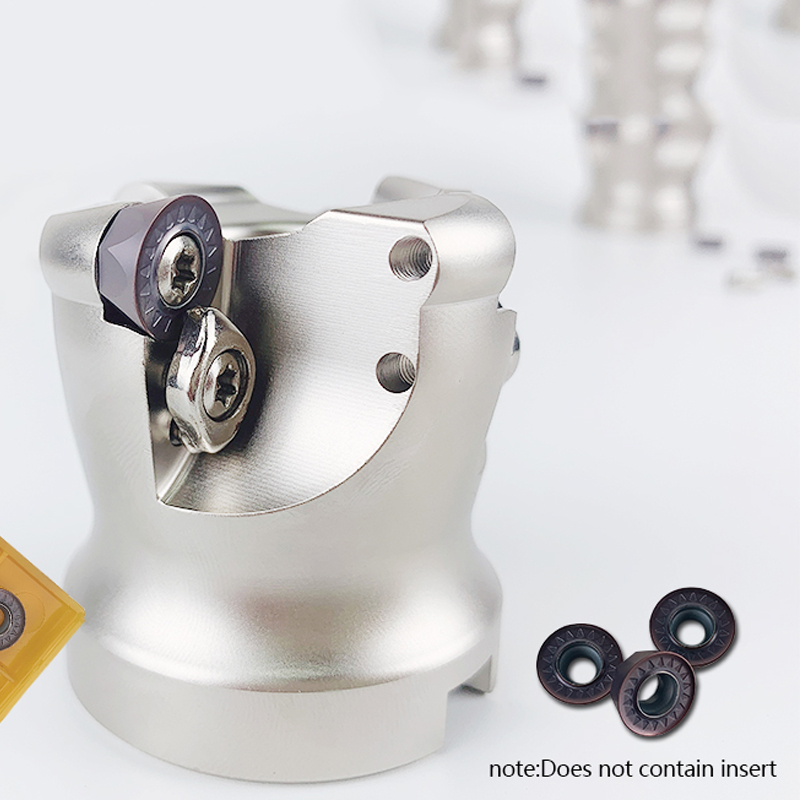

Round Inserts (Button Cutters):

• Infinite cutting edges (rotateable)

• Excellent for high-feed applications

• Superior edge strength

• Best for: Roughing, difficult materials, interrupted cuts

Octagonal Inserts:

• 8 usable cutting edges

• Stronger corner than square inserts

• Good balance of economy and performance

• Ideal for: General steel milling

Trigonal Inserts:

• 6 cutting edges

• Positive rake geometry

• Free-cutting action

• Perfect for: Aluminum, stainless steel

2.3 By Cutter Design Philosophy

High-Feed Cutters:

• Small lead angles (10°-15°)

• Very high feed rates possible (0.040-0.080" per tooth)

• Low radial, high axial engagement

• Result: Reduced machine power requirements

High-Efficiency Cutters:

• Variable pitch design (uneven tooth spacing)

• Chatter-free operation

• Superior surface finishes

• Benefit: Can run at higher parameters without vibration

Fine-Pitch Cutters:

• Many teeth (close spacing)

• High surface quality (Ra < 32 μin)

• Light cutting conditions

• Application: Finishing, semi-finishing







Chapter 3: Material-Specific Face Milling Strategies

3.1 Steel and Cast Iron (The Workhorses)

Tool Selection Priority:

1. Cutter: Medium to coarse pitch, 45° lead angle

2. Insert: Square or octagonal, reinforced corner

3. Coating: TiCN or TiAlN for steel, uncoated for cast iron

Parameter Optimization:

Material: AISI 1045 Steel
Cutter: 4" diameter, 6 inserts
SFM: 450-550
Chip Load: 0.008-0.012" per tooth
Axial DOC: 0.100-0.250"
Radial DOC: 50-75% of cutter diameter

Critical Consideration: For ductile cast iron, use positive rake geometry to prevent edge build-up. For gray cast iron (with sand inclusions), choose tough substrate inserts.

3.2 Aluminum and Non-Ferrous Alloys

Tool Selection Priority:

1. Cutter: High tooth count, polished flutes

2. Insert: Sharp, positive rake (often polished)

3. Coating: Uncoated or AlTiN for abrasion resistance

High-Speed Parameters:

Material: 6061 Aluminum
Cutter: 3" diameter, 8 inserts
SFM: 1200-1800
Chip Load: 0.006-0.010" per tooth
Axial DOC: 0.150-0.300"
Radial DOC: 75-100% (full immersion possible)

Pro Tip: For finishing aluminum faces, use wiper inserts (flat lands behind cutting edge) to double feed rates while maintaining surface finish.

3.3 Difficult Materials (Stainless, Titanium, Inconel)

Tool Selection Priority:

1. Cutter: Variable pitch, robust design

2. Insert: Round or large corner radius

3. Coating: Specialized (like AlTiN-TiSiN nanocomposite)

Conservative Approach Required:

Material: 304 Stainless Steel
Cutter: 3" diameter, 5 inserts (coarse pitch)
SFM: 250-350
Chip Load: 0.005-0.008" per tooth
Axial DOC: 0.080-0.150"
Radial DOC: 30-50% of cutter diameter

Safety Rule: In titanium and nickel alloys, never stop feed during cut. Always program continuous motion to prevent work hardening.

Chapter 4: Advanced Techniques for Superior Results

4.1 The Art of Surface Finish Control

Three Methods to Improve Surface Finish:

1. Wiper Geometry:

   • Flat land behind cutting edge

   • Smears surface peaks

   • Allows 2x feed rate at same Ra value

2. Lead Angle Selection:

   90° Lead: Best for flatness, thin walls
   75° Lead: Good balance
   45° Lead: Best surface finish, reduced power

3. Stepover Strategy:

   • 50% stepover: Maximum productivity

   • 33% stepover: Good finish balance

   • 10-15% stepover: Finishing with small cutters

4.2 Chatter Prevention and Vibration Control

Four-Step Diagnostic and Solution:

1. Identify: Listen for characteristic "singing" sound

2. Analyze: Check for regular pattern on surface

3. Immediate Fix:

   • Reduce RDOC by 30%

   • Increase feed rate by 20%

   • Change cutter rotation direction

4. Permanent Solution:

   • Use variable pitch cutter

   • Increase cutter diameter

   • Reduce overhang (cutter + holder)

4.3 Coolant Strategy for Face Milling

Critical Insight: For high-feed milling, coolant must reach the cutting zone despite high chip evacuation rates. Through-tool coolant is often essential.

Chapter 5: Economic Analysis and ROI Calculation

5.1 Total Cost of Ownership Formula

TCO = (Cutter Cost + Insert Cost × Changes) +
       (Machine Rate × Total Time) +
       (Setup/Downtime Costs) +
       (Scrap/Rework Costs)

5.2 When to Upgrade: The Investment Decision Matrix

5.3 The Productivity Equation

Calculate potential savings:

Current: 4" face, 0.010" ipt, 500 SFM = 10 in³/min MRR
Upgrade: Same cutter, 0.018" ipt, 600 SFM = 18 in³/min MRR

Time Savings: 44% reduction
Annual Savings (1000 hours): $22,000 at $50/hour

Chapter 6: Troubleshooting Guide: From Problem to Solution

6.1 Surface Quality Issues

Problem: Poor surface finish (visible feed marks)

• Cause: Feed rate too high for cutter geometry

• Solution: Reduce feed by 30% or use wiper inserts

• Prevention: Calculate theoretical Ra = (Feed²)/(8×Nose Radius)

Problem: Visible step between passes

• Cause: Tool deflection or machine backlash

• Solution: Use climb milling, reduce axial DOC

• Prevention: Program 0.001-0.002" overlap between passes

6.2 Tool Life Problems

Problem: Insert chipping at corners

• Cause: Entry/exit shock or interrupted cut

• Solution: Use round inserts or larger corner radius

• Prevention: Program arc entry/exit moves

Problem: Rapid flank wear

• Cause: Speed too high or inadequate coolant

• Solution: Reduce SFM by 20%, check coolant concentration

• Diagnostic: Analyze wear pattern—thermal vs abrasive

Chapter 7: The Future of Face Milling Technology

7.1 Emerging Innovations

Smart Cutters:

• Embedded sensors for temperature and vibration

• RFID chips for automatic tool identification

• Wireless data transmission to CNC or monitoring systems

Additive Manufactured Bodies:

• Lightweight optimized structures

• Internal coolant channels impossible with machining

• Custom geometries for specific applications

AI-Optimized Geometries:

• Machine learning algorithms design insert shapes

• Performance prediction before physical testing

• Material-specific micro-geometries

7.2 Sustainability Trends

Dry Machining Developments:

• Specialized coatings for dry cutting

• Geometry optimized for heat dissipation

• Reduced environmental impact

Circular Economy Models:

• Cutter body refurbishment programs

• Insert recycling and reconditioning

• Carbon footprint tracking





•

Chapter 8: Your Implementation Roadmap

8.1 The 30-Day Optimization Plan

Week 1-2: Assessment Phase

• Document current face milling operations

• Measure actual surface finishes vs requirements

• Calculate current MRR and cost per part

Week 3-4: Testing Phase

• Select one problematic or high-volume operation

• Test two alternative approaches (geometry or parameters)

• Collect data: finish quality, tool life, cycle time

Month 2: Implementation

• Scale successful changes to similar operations

• Train operators on new procedures

• Establish monitoring metrics

8.2 Essential Investment Priorities

Start Here (Quick Wins):

1. Insert grade optimization for your primary material

2. Proper lead angle selection for your application

3. Coolant optimization (concentration, pressure, direction)

Then Progress To:
4. Cutter body upgrade for vibration reduction
5. Advanced geometries (wipers, variable pitch)
6. Process monitoring systems

Conclusion: Beyond the Cutter—Systems Thinking

The perfect face milling cutter doesn't exist in isolation. It's part of a system:

1. Machine Tool: Rigidity, power, spindle interface

2. Workholding: Stability, accessibility, dampening

3. Programming: Toolpaths, entry/exit strategies

4. Coolant: Delivery, filtration, chemistry

5. Measurement: Verification, feedback loops

Your competitive advantage won't come from any single component, but from how these elements work together. A moderately priced cutter in a well-optimized system will outperform the most expensive cutter in a poorly configured setup every time.

Final Thought: The most significant variable in face milling success isn't in your tool crib—it's in your approach. Are you treating face milling as a commodity operation or a strategic process? The difference between these mindsets is measured in surface quality, throughput, and ultimately, profitability.

Start with one improvement. Measure the results. Scale what works. The journey to face milling excellence is incremental, but each step delivers immediate, measurable returns.
