Integrally Hardened Tool Shank
The tool shank is vacuum-hardened to achieve high hardness and resistance to
deformation,making it suitable for heavy-duty cutting with smooth chip evacuation,
high efficiency, wear resistance, and vibration damping.
Static Grinding of the Center Hole
Grinding is performed using a Taiwanese five-axis center-grinding machine, significantly
improving the tool shank’s concentricity and roundness.
Perfectly Seamless Blade with No Chipping
The triangular screw positioning design ensures a tight fit, enhancing rigidity and delivering
superior machining results.
Effective Clearance to Prevent Friction
During machining, the milling cutter shank effectively clears the workpiece, preventing
friction and providing a larger chip clearance space.

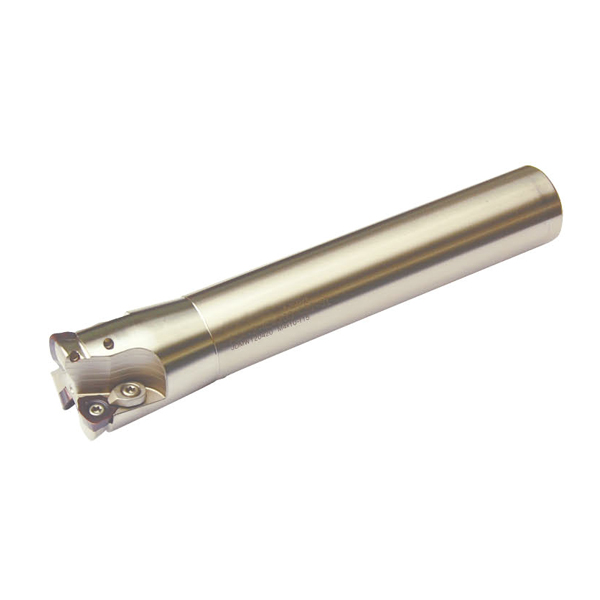

★ Most suitable for large feed cutting
|
Cat.No |
Teeth |
D |
d |
L |
L1 | a | Insert | Clamp piece | Clamp screw | Wrench |
|
AJX06-C16-17-160 |
2 |
17 |
16 |
160 |
-- |
1 |
JDMT120420ZDSR |
AJX-12 |
M4x10 |
T15 |
|
AJX08-C20-21-160 |
2 |
21 |
20 |
160 |
-- |
1.5 |
||||
|
AJX09-C25-26-200 |
2 |
26 |
25 |
200 |
-- |
2 |
||||
|
AJX12-C32-33-160 |
2 |
33 |
32 |
160 |
-- |
2 |
||||
|
AJX12-C32-33-200 |
2 |
33 |
32 |
200 |
-- |
2 |
||||
|
AJX12-C32-33-250 |
2 |
33 |
32 |
250 |
-- |
2 |
