Carefully Selected Steel with High Tensile Strength
Made from high-quality low-carbon alloy steel; threaded after quenching;
precision machining process
The handle features high hardness, excellent wear resistance, and a long service life.
Precision Grinding and Polishing
The surface undergoes precision grinding and polishing to enhance smoothness.
The body is forged as a single piece, ensuring tight metal bonding for stability,
wear resistance, and rust prevention.
Body Quenched for High Hardness
A process of carburizing followed by quenching is employed, resulting in high surface hardness,
superior wear resistance, and an extended service life.
1、Thermal treatment process improve the clamping precision and stability.
2、Finish surface with long durability.
|

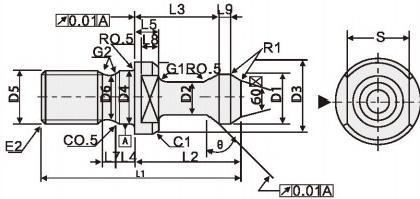

Specication |
L1 |
D4 |
D5 |
D6 |
E2 |
G2 |
L4 |
L7 |
D3 |
G1 |
L5 |
S |
D1 |
D2 |
L2 |
L3 |
L9 |
θ |
|
|
BT30 |
30 45 60 90 |
43 43 43 43 |
12.5 12.5 12.5 12.5 |
M12 M12 M12 M12 |
9.5 9.5 9.5 9.5 |
1.75 1.75 |
1 1 1 1 |
4 4 4 4 |
3 |
16.5 16.5 16.5 16.5 |
2 |
5
5 |
13 13 13 13 |
11 11 11 11 |
7
7 |
23 23 23 23 |
18 18 18 18 |
2.5 2.5 2.5 2.5 |
30 45 60 90 |
|
BT40 |
30 45 60 90 |
60 60 60 60 |
17 17 17 17 |
M16 M16 M16 M16 |
13 13 13 13 |
2 2 2 2 |
1 1 1 1 |
5 5
5 |
4 4 4 4 |
23 23 23 23 |
3 3 3 3 |
6 6 6 6 |
19 19 19 19 |
15 15 15 15 |
10 10 10 10 |
35 35 35 35 |
28 28 28 28 |
3 3 3 3 |
30 45 60 90 |
| BT50 |
30 45 60 90 90 |
85 85 85 71 85 |
25 25 25 25 25 |
M24 M24 M24 M24 M24 |
20 20 20 20 20 |
3 3 3 3 3 |
1.5 1.5 1.5 1.5 1.5 |
8 8 8 8 8 |
5 5 5 5 5 |
38 38 38 36 38 |
5 5 5 5 5 |
10 10 10 10 10 |
30 30 30 30 30 |
23 23 23 24 23 |
17 17 17 18 17 |
45 45 45 31 45 |
35 35 35 35 35 |
5 |
30 45 60 90 90 |
