1、Thermal treatment process improve the clamping precision and stability.
2、Finish surface with long durability.
Carefully Selected Steel with High Tensile Strength
Made from high-quality low-carbon alloy steel; threaded after quenching;
precision machining process
The handle features high hardness, excellent wear resistance, and a long service life.
Precision Grinding and Polishing
The surface undergoes precision grinding and polishing to enhance smoothness.
The body is forged as a single piece, ensuring tight metal bonding for stability,
wear resistance, and rust prevention.
Body Quenched for High Hardness
A process of carburizing followed by quenching is employed, resulting in high surface hardness,
superior wear resistance, and an extended service life.

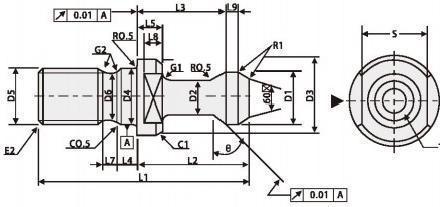

| Specification | L1 | D4 | D5 | D6 | E2 | G2 | L4 | L7 | D3 | G1 | L5 | S | D1 | D2 | L2 | L3 | L9 | θ | |
| BT30 |
30 COOLANT 45 COOLANT 60 COOLANT 90 COOLANT |
43 43 43 43 |
12.5 12.5 12.5 12.5 |
M12 M12 M12 M12 |
9.5 9.5 9.5 9.5 |
1.75 1.75 1.75 1.75 |
1 1 1 1 |
4 4 4 4 |
3 3 3 3 |
16.5 16.5 16.5 16.5 |
2 2 2 2 |
5 5 5 5 |
13 13 13 13 |
11 11 11 11 |
7 7 7 7 |
23 |
18 18 18 18 |
2.5 2.5 2.5 2.5 |
30 45 60 90 |
| BT40 |
30 COOLANT 45 COOLANT 60 COOLANT 90 COOLANT |
60 60 60 60 |
17 17 17 17 |
M16 M16 M16 M16 |
13 13 13 13 |
2 2 2 2 |
1 1 1 1 |
5 5 5 5 |
4 4 4 4 |
23 23 23 23 |
3 3 3 3 |
6 6 6 6 |
19 19 19 19 |
15 15 15 15 |
10 10 10 10 |
35 35 35 35 |
28 28 28 28 |
3 3 3 3 |
30 45 60 90 |
| BT50 |
30 COOLANT 45 COOLANT 60 COOLANT 90 COOLANT 90L COOLANT |
85 85 85 71 85 |
25 25 25 25 25 |
M24 M24 M24 M24 M24 |
20 20 20 20 20 |
3 3 3 3 3 |
1.5 1.5 1.5 1.5 1.5 |
8 8 8 8 8 |
5 5 5 5 5 |
38 38 38 36 38 |
5 5 5 5 5 |
10 10 10 10 10 |
30 30 30 30 30 |
23 23 23 24 23 |
17 17 17 18 17 |
45 45 45 31 45 |
35 35 35 35 35 |
5 5 5 5 5 |
30 45 60 90 90 |
