| 可铣削材料适用表 | √ 非常合适 | ⭕ 一般 | |||||||||||
| 碳素钢 | 预硬钢、硬化钢 | 不锈钢 | 铸铁 | 铜合金 | 铝合金 | 石墨 | 钛合金 | 高温合金 | 塑料 | ||||
| 合金钢 | 工具钢 | 40HRC | 50HRC | 55HRC | 65HRC | ||||||||
| ○ | √ | √ | √ | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | ||||
| D≤4 0~-0.01 4<D≤6 0~-0.012 6<D≤10 0~-0.015 10<D≤20 0~-0.018 | ||||

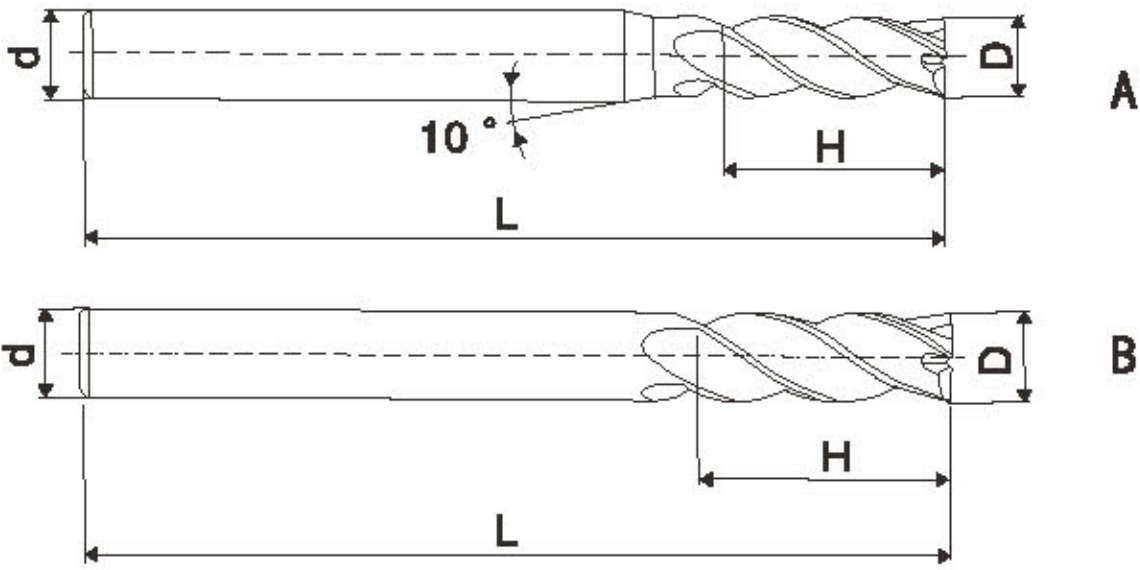

| 刃径 D |
刃长 H |
柄径 d |
总长 L |
图示 |
| 1.0 | 3 | 4D | 50L | A |
| 1.5 | 4 | 4D | 50L | A |
| 2.0 | 5 | 4D | 50L | A |
| 2.5 | 8 | 4D | 50L | A |
| 3.0 | 8 | 3D | 50L | B |
| 3.0 | 8 | 4D | 50L | A |
| 3.5 | 10 | 4D | 50L | A |
| 4.0 | 10 | 40 | 50L | B |
| 4.5 | 10 | 5D | 50L | A |
| 5.0 | 13 | 6D | 50L | A |
| 5.5 | 13 | 6D | 50L | A |
| 6.0 | 15 | 6D | 50L | B |
| 6.0 | 15 | 6D | 75L | B |
| 6.0 | 15 | 6D | 100L | B |
| 7.0 | 16 | 8D | 60L | A |
| 8.0 | 20 | 8D | 60L | B |
| 8.0 | 20 | 8D | 75L | B |
| 8.0 | 20 | 8D | 100L | B |
| 9.0 | 20 | 10D | 75L | A |
| 10.0 | 25 | 10D | 75L | B |
| 10.0 | 25 | 10D | 100L | B |
| 10.0 | 25 | 10D | 150L | B |
| 11.0 | 25 | 12D | 75L | A |
| 12.0 | 30 | 12D | 75L | B |
| 12.0 | 30 | 12D | 100L | B |
| 12.0 | 30 | 12D | 150L | B |
| 14.0 | 35 | 14D | 100L | B |
| 16.0 | 40 | 16D | 100L | B |
| 16.0 | 40 | 16D | 150L | B |
| 20.0 | 45 | 20D | 100L | B |
