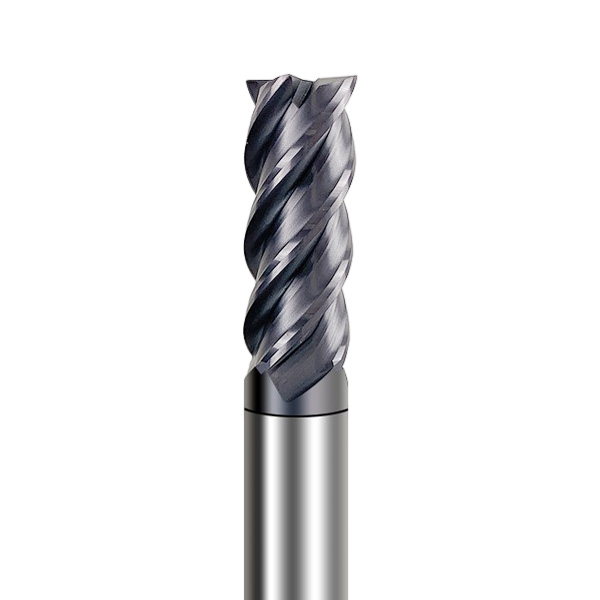

The 400 series carbide end mills offer excellent performance and cost-effectiveness.
Selected 0.4μm ultra-fine grain high-quality cemented carbide material, with excellent wear resistance and anti-chipping performance, can meet the complex working conditions, for machining 35HRC-52HRC materials.
Special tool design with high rigidity performance material can get good anti-vibration effect and make the service life of end mill longer.
High precision tolerance and quality control.
The use of coolant and oil-containing cutting fluid is recommended.
Roughing and finishing.
Table for use of processed materials √well suited 〇general
|
Carbon steel Alloy steel |
Prehardenedsteel、Hardened steel |
Stainless steel |
Cast iron |
Coppe |
Aluminium |
Graphite |
Titanium alloy |
Heat resistant alloy |
Plastics |
|||
|
40HRC |
50HRC |
55HRC |
65HRC |
|||||||||
|
√ |
√ |
√ |
〇 |
〇 |
√ |
〇 |
〇 |
〇 |
〇 |
|||
| D≤12 0~-0.02 12<D 0~-0.03 | ||||
| blade diameter D |
blade length H |
shank diameter d |
total length L |
illustration |
| 1.0 | 3 | 4D | 50L | A |
| 1.5 | 4 | 4D | 50L | A |
| 2.0 | 5 | 4D | 50L | A |
| 2.5 | 8 | 4D | 50L | A |
| 3.0 | 8 | 3D | 50L | B |
| 3.0 | 8 | 4D | 50L | A |
| 3.5 | 10 | 4D | 50L | A |
| 4.0 | 10 | 40 | 50L | B |
| 4.5 | 10 | 5D | 50L | A |
| 5.0 | 13 | 6D | 50L | A |
| 5.0 | 20 | 6D | 75L | A |
| 5.5 | 13 | 6D | 50L | A |
| 6.0 | 15 | 6D | 50L | B |
| 6.0 | 20 | 6D | 75L | B |
| 6.0 | 20 | 6D | 100L | B |
| 7.0 | 20 | 8D | 60L | A |
| 8.0 | 20 | 8D | 60L | B |
| 8.0 | 25 | 8D | 75L | B |
| 8.0 | 25 | 8D | 100L | B |
| 9.0 | 20 | 10D | 75L | A |
| 10.0 | 25 | 10D | 75L | B |
| 10.0 | 30 | 10D | 100L | B |
| 10.0 | 30 | 10D | 150L | B |
| 11.0 | 25 | 12D | 75L | A |
| 12.0 | 30 | 12D | 75L | B |
| 12.0 | 35 | 12D | 100L | B |
| 12.0 | 35 | 12D | 150L | B |
| 14.0 | 35 | 14D | 75L | B |
| 16.0 | 45 | 16D | 100L | B |
| 16.0 | 50 | 16D | 150L | B |
| 20.0 | 45 | 20D | 100L | B |
