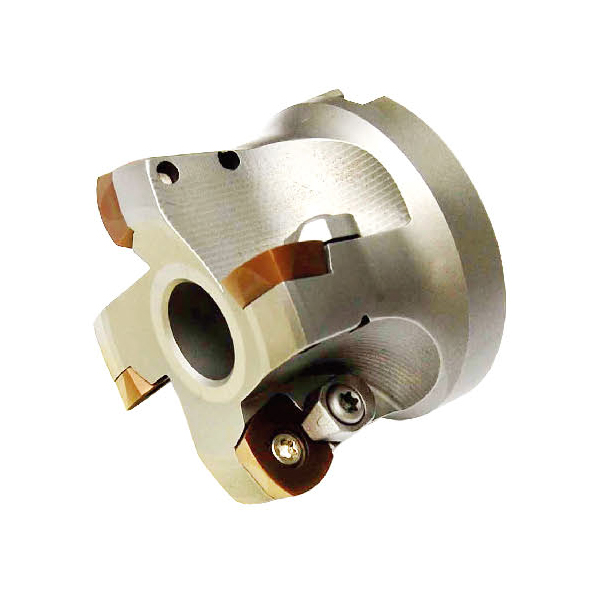

★ Double clamping body rigidity
★ The most suitable for large-feed cutting
★ With standard cooling holes
★ 4 for special shaped blade edge angle
|
Cat.No |
Size |
Insert |
Clamp piece |
Clamp screw |
Wrench | |||||
|
D |
D1 |
d |
H |
W |
T |
|||||
|
ASRT2050-22-6T |
50 |
47 |
22 |
50 |
10.4 |
6.3 |
EPNW0603TN-8 |
-- |
M2.5X6 |
T8 |
|
ASRT5063-22-3T |
63 |
60 |
22 |
50 |
10.4 |
6.3 |
SDNW1505ZDTN-15 |
ASF-5 |
M5X12 |
T20 |
|
ASRT5080-27-5T |
80 | 70 |
27 |
50 |
12.4 |
7 |
SDNW1505ZDTN-15 | ASF-5 | M5X12 | T20 |
| ASRT5100-32-5T | 100 | 90 | 32 | 50 | 14.4 | 8 | SDNW1505ZDTN-15 | ASF-5 | M5X12 | T20 |
| ASRT5125-40-6T | 125 | 90 | 40 | 50 | 16.4 | 9 | SDNW1505ZDTN-15 | ASF-5 | M5X12 | T20 |
| ASRT5125-40-6T | 160 | 120 | 40 | 50 | 16.4 | 9 | SDNW1505ZDTN-15 | ASF-5 | M5X12 | T20 |
| ASRT5200-60-8T | 200 | 120 | 60 | 50 |
25.7 |
14 | SDNW1505ZDTN-15 | ASF-5 | M5X12 | T20 |
| ASRT5200-60-10T | 200 | 120 | 60 | 50 | 25.7 | 14 | SDNW1505ZDTN-15 | ASF-5 | M5X12 | T20 |
