Material: 40CrMo
Screw Size: M5*12

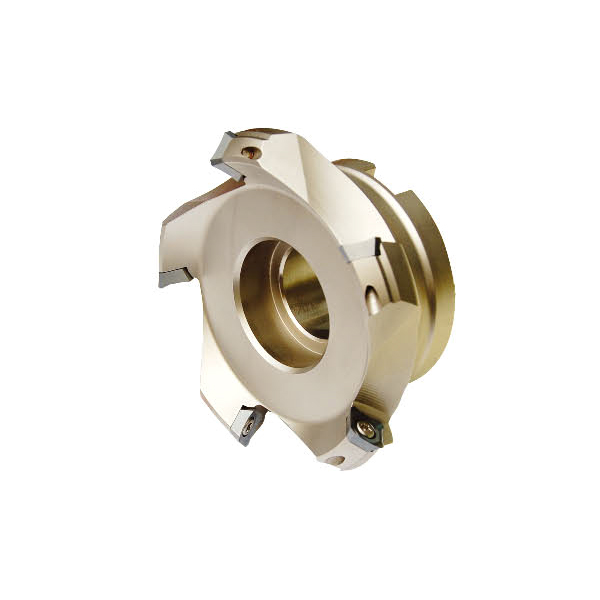

Product Name: KM12-45° Face Milling Cutter
Angle: 45°
Wrench Size: T20
Product Features:
★ Suitable for steel parts,castings and aluminum parts with a wide range of materials
★ Large chip space,good chip removal
★It is suitable for finishing of plane milling
★ Large front Angle,small cuttingload
Fitted with SEHT1204 Inserts
Hardened and Tempered
Shock-Resistant and Wear-Resistant
High-Speed Milling
Hardened and Tempered for High Precision and Shock Resistance
Excellent hardenability, impact resistance, and low-temperature toughness ensure durability,
extending service life and enhancing shock resistance.
Precise Fit with Strong Clamping Force
Offset screw fastening design ensures blade slots tightly align with blades, enhancing rigidity
for superior machining results
Precision chip evacuation grooves enable smooth milling
Large-capacity evacuation channels ensure efficient chip removal, minimizing blade wear
or breakage caused by poor chip evacuation during machining
Anti-oxidation electroplated coating significantly extends product lifespan
Cutter head exhibits superior oxidation resistance for prolonged service life
|
Cat.No |
D |
D1 |
d |
H |
W |
T | Insert | Clamp screw | Wrench |
|
KM12-50-22-4T |
50 |
64 |
22 |
50 |
10.4 |
6.3 |
SE□T 1204 |
M5×12 |
T20 |
| KM12-63-22-4T | 36 |
77 |
22 | 50 | 10.4 | 6.3 | |||
| KM12-80-27-5T |
80 |
94 | 27 | 50 | 12.4 | 7 | |||
| KM12-100-32-5T | 100 | 114 | 32 | 50 | 14.4 | 8 | |||
| KM12-125-40-6T | 125 | 139 | 40 | 63 | 16.4 | 9 | |||
| KM12-160-40-6T |
160 |
174 |
40 |
63 |
16.4 |
9 |
|||
|
KM12-200-60-8T |
200 |
210 |
60 |
63 |
25.7 |
14 |
|||
|
KM12-250-60-10T |
250 |
260 |
60 |
63 |
25.7 |
14 |
|||
|
KM12-63-25.4-4T |
63 |
77 |
25.4 |
50 |
10 |
6 |
|||
|
KM12-80-25.4-5T |
80 |
94 |
25.4 |
50 |
10 |
6 |
|||
|
KM12-100-31.75-5T |
100 |
114 |
31.75 |
50 |
13 | 8 |
