Hardened for High Precision and Shock Resistance
Excellent hardenability, impact resistance, and low-temperature toughness ensure durability,
extending blade life and enhancing shock resistance.

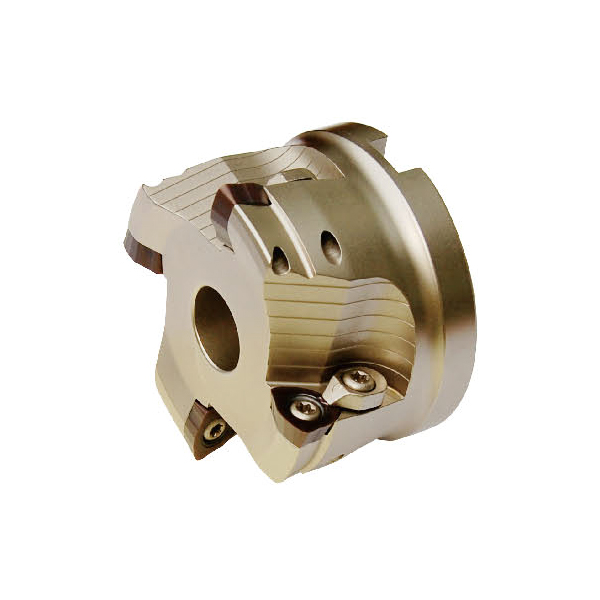

Hardened Cutting Disc for Effortless Machining
The cutting disc employs a hardening process + high hardness without deformation,
enabling heavy-duty cutting with greater feed rates than standard milling cutters.
This effectively saves labor hours and boosts efficiency.
Precision-fit Cutting Position
Screw-tightened design ensures blade slots snugly align with blades, preventing loosening.
Enhanced cutting position accuracy and rigidity deliver superior machining results.
Product Features:
Suitable for high-feed cutting. Tapered design provides strong bending resistance.
Vacuum-quenched surface undergoes sandblasting and electroplating for rust prevention while boosting cutter head surface hardness.
★ The use of 15°positive angle blade
★Double clamping body rigidity
★ The most suitable for large-feed cutting
★With standard cooling holes
★3 for special shaped blade edge angle
|
Cat.No |
Size |
Insert |
Clamp piece |
Clamp screw |
Wrench | |||||||
|
D |
D1 |
D2 |
d |
H |
W |
T |
a |
|||||
|
AJX12-50-22-3T AJX12-50-22-4T AJX12-63-22-4T |
50 50 63 |
47 47 60 |
38.3 38.3 51.3 |
22 22 22 |
50 50 50 |
10.4 10.4 10.4 |
6.3 6.3 6.3 |
1.5 1.5 1.5 |
JDMW1204 |
AJX-12 |
M4X10 |
T15 |
|
AJX14-63-22-3T AJX14-63-22-4T
AJX14-80-27-4T |
63 63 80 100 |
60 60 76 96 |
51.1 51.1 68.1 88.1 |
22 22 27 32 |
50 50 50 50 |
10.4 10.4 12.4 14.4 |
6.3 6.3 7 8 |
2 2 2 2 |
JDMW1405 |
AJX-14 |
M5X12 |
T20 |
