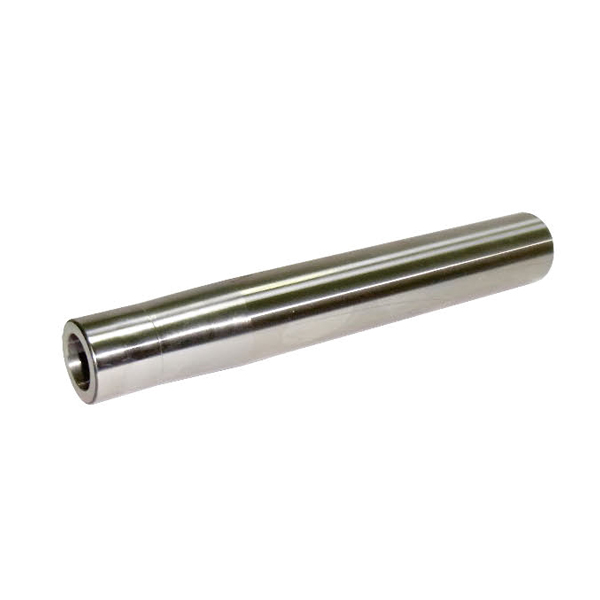

This product allows a single shank to be paired with multiple types of milling cutters,
maximizing the shank’s versatility.
8x stronger vibration resistance, improving efficiency and reducing costs
|
Cat.No |
L |
M |
D2 |
D |
|
16-16-100-M08 |
100 |
M8*1.25 |
8.5 |
16 |
| 16-16-150-M08 |
150 |
M8*1.25 | 8.5 | 16 |
| 16-16-200-M08 | 200 | M8*1.25 | 8.5 | 16 |
| 16-16-250-M08 | 250 | M8*1.25 | 8.5 | 16 |
|
19-19-200-M10 |
200 |
M10*1.5 |
10.5 |
19 |
|
20-20-100-M10 |
100 |
M12*1.75 |
12.5 |
25 |
|
20-20-150-M10 |
150 |
M12*1.75 |
12.5 |
25 |
|
20-20-200-M10 |
200 |
M12*1.75 |
12.5 |
25 |
|
20-20-250-M10 |
250 |
M12*1.75 |
12.5 |
25 |
|
20-20-300-M10 |
300 |
M12*1.75 |
12.5 |
25 |
|
24-24-200-M12 |
200 |
M10*1.5 |
10.5 |
20 |
|
25-25-100-M12 |
100 |
M16*2.0 |
17 |
29 |
|
25-25-150-M12 |
150 |
M16*2.0 | 17 | 29 |
|
25-25-200-M12 |
200 |
M16*2.0 | 17 | 29 |
|
25-25-250-M12 |
250 |
M16*2.0 | 17 | 29 |
|
25-25-300-M12 |
300 |
M16*2.0 | 17 | 29 |
|
29-29-250-M16 |
200 |
M12*1.75 |
12.5 |
24 |
|
32-32-150-M16 |
150 |
M16*2.0 |
17 |
32 |
|
32-32-200-M16 |
200 |
M16*2.0 | 17 | 32 |
|
32-32-250-M16 |
250 |
M16*2.0 | 17 | 32 |
|
32-32-300-M16 |
300 |
M16*2.0 | 17 | 32 |
| 32-32-400-M16 | 400 | M16*2.0 | 17 | 32 |
