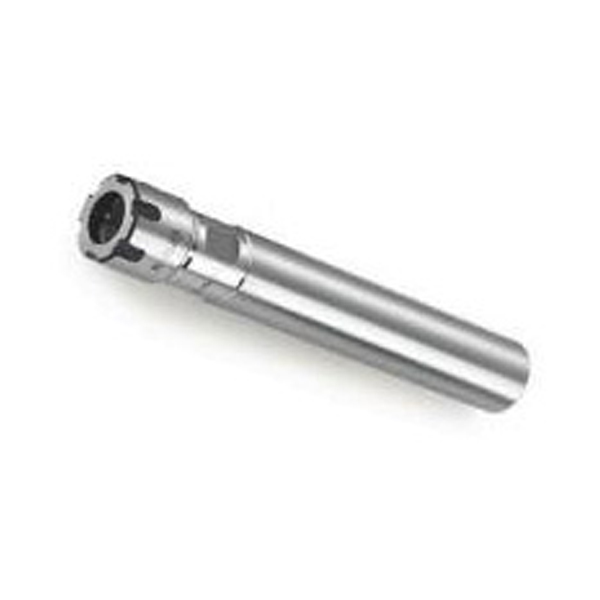

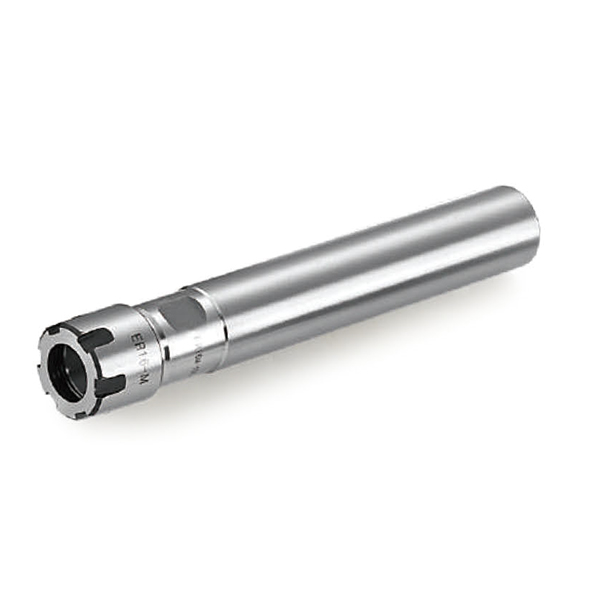

1、Tool body is high precision.
2、High concentricity,stable run-out accuracy to enhancefine machining surface roughness.
3、Finish surface with long durability.
|
Specifcation |
L |
L2 |
L1 |
D |
d1 |
Clamping range |
|
|
C10 |
-ER8-100M -ER8-150M |
115.5 165.5 |
100 150 |
15.5 |
12 |
10 |
0.5~5.0 |
|
C12 |
-ER11-100M -ER11-150 |
124 174 |
100 150 |
24 |
16 |
12 |
1.0~7.0 |
|
C16 |
-ER16-100M -ER16-150M -ER16-200M -ER16-100M -ER16-150M -ER16-200M |
135 185 235 135 185 235 |
100 150 200 100 150 200 |
35 |
22 |
16
20 |
1.0~10.0 |
|
C20 |
-ER20-100M -ER20-150M -ER20-200M |
140 190 240 |
100 150 200 |
40 |
28 |
20 |
1.0~13.0 |
|
C25 |
-ER25-100UM -ER25-150UM -ER25-100UM -ER25-150UM |
145 295 145 195 |
100 150 100 150 |
45 |
42 |
25 32 |
2.0~16.0 |
| C32 |
-ER32-100UM -ER32-150UM -ER32-200UM |
150 200 250 |
100 150 200 |
50 |
50 |
32 |
3.0~20.0 |
