Carbide 4-Flute Flat Milling Cutter

Products

Flat bottom milling cutter

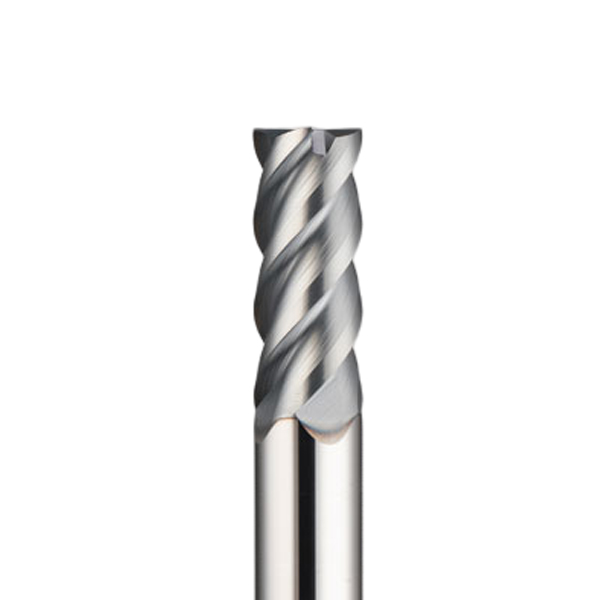

Carbide 4 flute end mill

200 series carbide Milling cutter with excellent performance and high cost performance. Comparable to the quality of Europe, America and Japan.
Selection of 0.2μm imported super fine-grained carbide material, high speed processing of high hardness materials with long life.
end milling cutters unique front and rear angle process design, processing optical molds have a higher surface finish, suitable for processing 45HRC-60HRC, hardened steel processing wear resistance is more excellent.
High precision tolerance, quality control.
Oil mist, micro-lubrication, air cooling are recommended.
Semi-finishing, finishing.

Applicable Table for Millable Materials√fit as a pudding for a friar's mouth〇appropriate

carbon steel
alloy steel

Pre hardened steel, hardened steel

Stainless steel

cast iron

copper

aluminium

graphite

titanium alloy

Heatresistant alloy

plastic

40HRC

50HRC

55HRC

65HRC

〇

√

〇

D ≤four~-0.01 4<D≤ 6 0~-0.012 6<D≤ 10.0~-0.015 10<D≤ 20 0~-0.018

Blade diameter D	Blade length H	Stem diameter D	Total length L	Illustration
1	2.5	4D	50L	A
1.5	3.7	4D	50L	A
2	5	4D	50L	A
2.5	6	4D	50L	A
3	7.5	3D	50L	B
3	7.5	4D	50L	A
4	10	4D	50L	B
2	5	6D	50L	A
3	7.5	6D	50L	A
4	10	6D	50L	A
5	12.5	5D	50L	B
5	12.5	6D	50L	A
6	15	6D	50L	B
6	15	6D	75L	B
6	15	6D	100L	B
8	20	8D	60L	B
8	20	8D	75L	B
8	20	8D	100L	B
10	25	10D	75L	B
10	25	10D	100L	B
12	30	12D	75L	B
12	30	12D	100L	B
14	35	14D	100L	B
16	40	16D	100L	B
16	40	16D	150L	B
20	50	20D	100L	B
20	50	20D	150L	B
