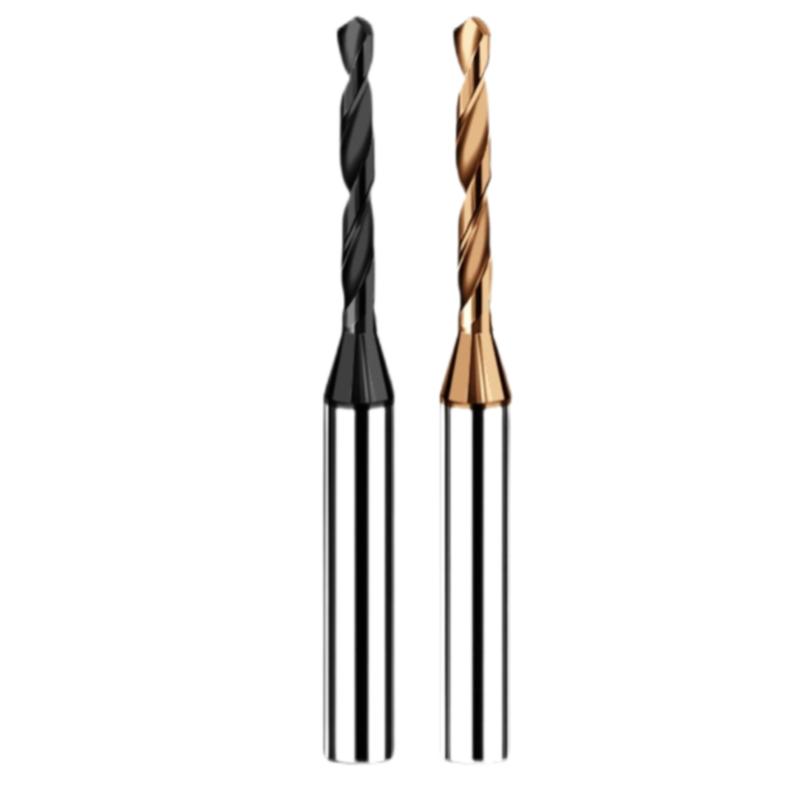

0.4μm Micro-Grain Tungsten Carbide
Utilizes micro-grain tungsten carbide substrate for enhanced wear resistance and stability
Designed as a specialized milling cutter for high-hardness, high-speed cutting applications
Drilling with light, fast chip removal and no residue
Sharp, wear-resistant cutting edges ensure smooth drilling;
precision-ground anti-chipping ribs with high internal surface finish
| Specs | Blade Diameter | Blade Length | Shank Diameter | Total Length |
| 0.30-0.39*3*D3*38 | 0.30-0.39（0.01mm） | 3 | 3 | 38 |
| 0.40-0.59*4*D3*38 | 0.40-0.59（0.01mm） | 4 | 3 | 38 |
| 0.45-0.49*4*D3*38 | 0.45-0.49（0.01mm） | 4 | 3 | 38 |
| 0.50-0.54*4*D3*38 | 0.50-0.54（0.01mm） | 4 | 3 | 38 |
| 0.60-0.64*5*D3*38 | 0.60-0.99（0.01mm） | 5 | 3 | 38 |
| 1.0-1.19*8*D3*38 | 1.0-1.19（0.01mm） | 8 | 3 | 38 |
| 1.20-1.84*10*D3*38 | 1.20-1.84（0.01mm） | 10 | 3 | 38 |
| 1.85-1.99*11*D3*38 | 1.85-1.99（0.01mm） | 11 | 3 | 38 |
| 2.0-2.54*12*D3*38 | 2.0-2.54（0.01mm） | 12 | 3 | 38 |
| 2.55-2.99*14*D3*38 | 2.55-2.99（0.01mm） | 14 | 3 | 38 |
| 2.0-2.20*12*D3*38 | 2.0-2.20（0.05mm） | 12 | 3 | 38 |
| 2.25-2.45*12*D3*38 | 2.25-2.45（0.05mm） | 12 | 3 | 38 |
| 2.50-2.70*12*D3*38 | 2.50-2.7O（0.05mm） | 12 | 3 | 38 |
| 2.75-3.0*14*D3*38 | 2.75-3.O（0.05mm） | 14 | 3 | 38 |
