Suitable for various CNC engraving machines and other equipment
Widely used in milling, boring, drilling, and tapping operations
Strong clamping force with high elasticity
Precision ground for high accuracy and stability
Martensitic structure heat treatment method
High versatility for heavy-duty cutting

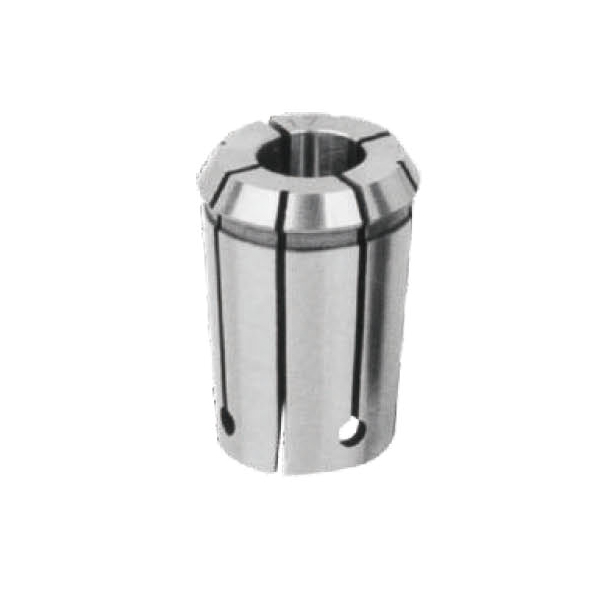

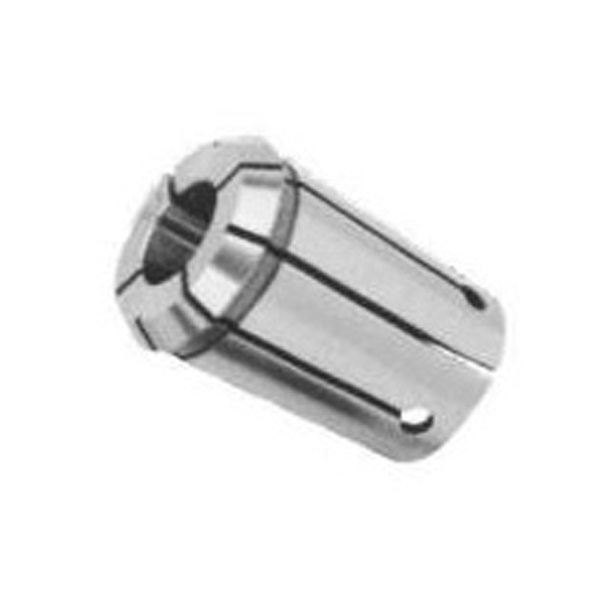

Name: OZ Collet
Specification: OZ25
Size: 3mm-25mm
Accuracy: Within 0.01mm
Features: Made of 65Mn steel, resistant to deformation with high hardness and strong elasticity.
|
Specfication |
D1 |
L |
D2 |
|
OZ25 |
35.5 |
52 |
3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24.25 |
|
OZ32 |
44 |
60 |
6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32 |
|
Specification |
D1 |
L |
D2 |
| OZ25 |
35.5 |
52 |
1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1" |
| OZ32 | 44 | 60 | 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16 ,7/8, 15/16, 1", 11/8, 11/4" |
