1、Integrated design of holder and chuck prevents separation of the tool components,ensure reliable and stable machining.
2、Self tightening,gripping force is enhanced when the dilling torque increase,which can avoid slipping of the drills.
3、Super dill chuck with high precision and durability.
4、Wide application in diling machine,milling machines and lathe.
Runout: 0.08mm
Hardness: HRC 55
Material: 20CrMnTi steel
Overall clamping runout: 0.08
True roundness: <0.8
Carburization depth: >0.8mm
|

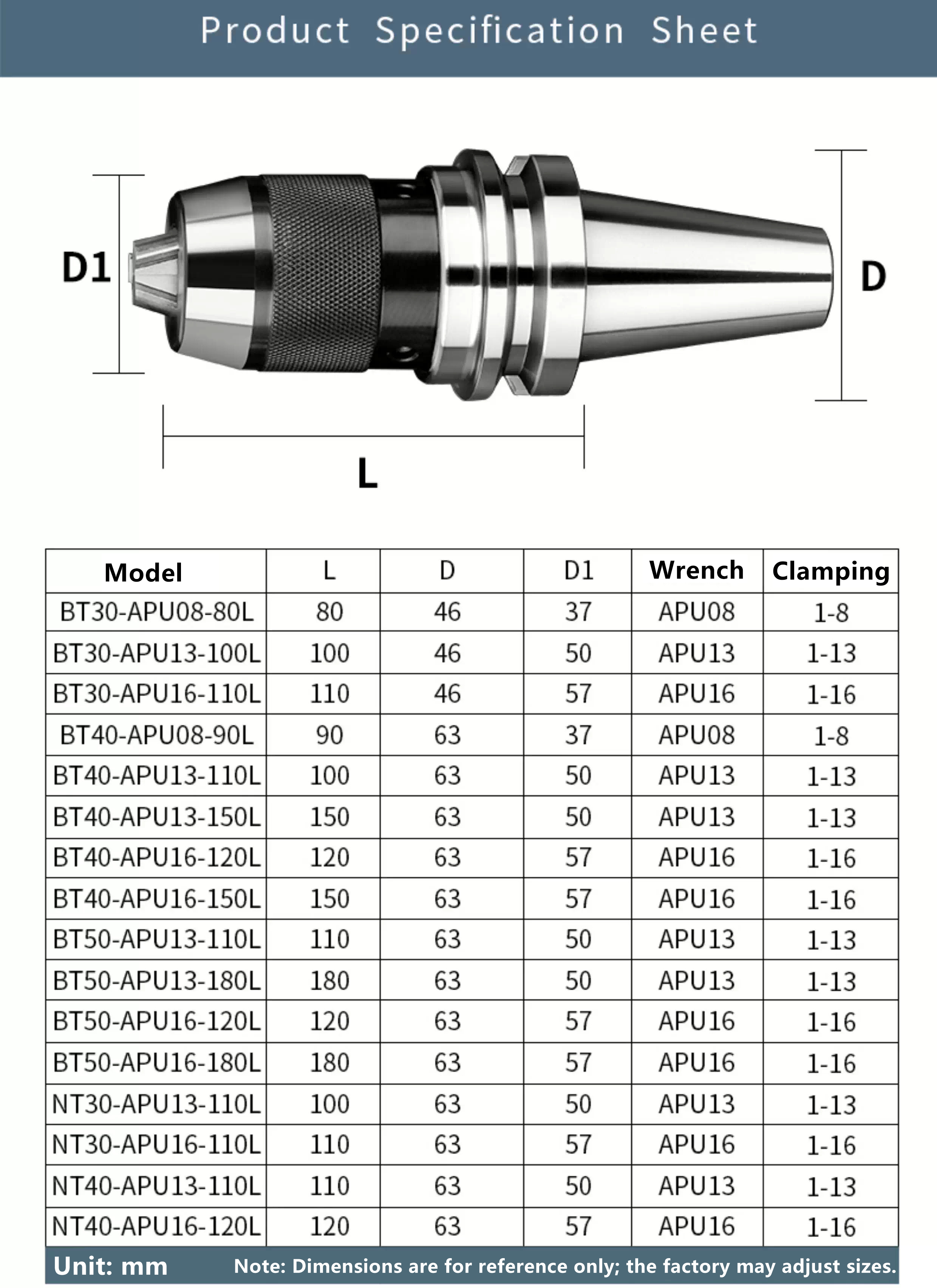

Specification |
D1 |
D2 |
L1 |
L |
Clamping range |
Weight(KG) |
|
|
BT30 |
-APU8-80 |
36.5 |
46 |
80 |
137.4 |
0.5~8 |
0.80 |
|
-APU13-110 |
48 |
46 |
110 |
158.4 |
1~13 |
1.85 |
|
|
-APU16-110 |
55.5 |
46 |
110 |
158.4 |
3~16 |
2.18 |
|
|
-APU8-85 |
36.5 |
0.63 |
85 |
150.4 |
0.5~8 |
1.46 |
|
|
-APU13-105 -APU13-130 |
48 |
0.63 |
105 130 |
170.4 195.4 |
1~13 |
2.00 2.33 |
|
|
-APU16-105 -APU16-130 |
55.5 |
0.63 |
105 130 |
170.4 195.4 |
3~16 |
2.33 2.60 |
|
|
BT50 |
-APU8-90 |
36.5 |
100 |
90 |
191.8 |
0.5~8 |
4.20 |
|
-APU13-110 -APU13-180 |
48 |
100 |
110 180 |
211.8 281.8 |
1~13 |
4.70 5.80 |
|
|
-APU16-115 -APU16-130 -APU16-190 |
55.5 |
100 |
115 130 190 |
216.8 236.8 296.8 |
3~16 |
5.10 6.10 |
