1、Modular type screw cutter connected with tool holder,countersink surface.
2、Direct connection without collet,repetition tolerance is reduced.
3、Equal cutting force promise the improved insert life and less processing chatter marks
4、Changeable screw cutter bar,precision repetition,suitable for rough and finish machining.
5、Vanious insert type can be applied for the the screw cutter,different combinations with the tool holder are available.Model: BT30, BT40, BT50
Features: High rigidity, low vibration, high efficiency

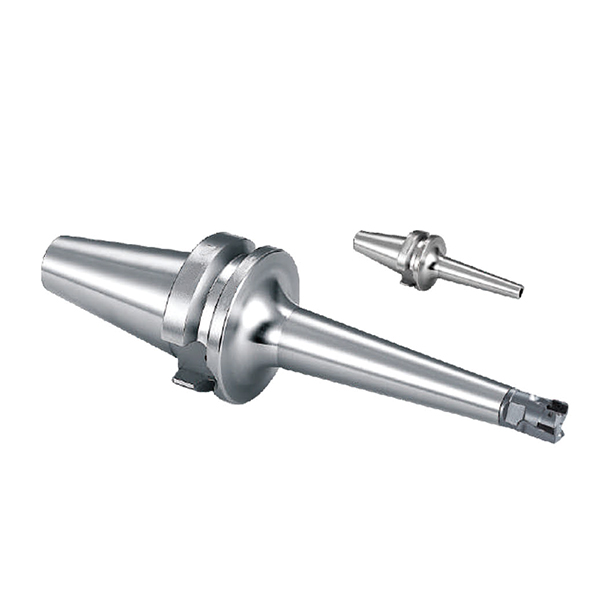

Product name: INDEXABLE SCREW TYPE MODULAR CUTTER
Carburisation depth: >0.8 mm
Material: 20CrMnTi steel
|
Specification |
M |
D |
DC |
L |
L2 |
L1 |
|
BT30-M6-50L |
6 |
12 |
17 |
50 |
/ |
30 |
|
BT30-M6-100L |
6 |
12 |
17 |
100 |
/ |
80 |
|
BT30-M8-45L |
8 |
15 |
17 |
45 |
/ |
25 |
|
BT30-M8-50L |
8 |
15 |
17 |
50 |
/ |
30 |
|
BT30-M8-100L |
8 |
15 |
17 |
100 |
/ |
80 |
|
BT30-M10-45L |
10 |
19 |
21 |
45 |
1 |
25 |
|
BT30-M10-50L |
10 |
19 |
21 |
50 |
f |
30 |
|
BT30-M10-100L |
10 |
19 |
21 |
100 |
/ |
80 |
|
BT30-M12-60L |
12 |
24 |
60 |
/ |
40 |
|
|
BT30-M12-100L |
12 |
24 |
26 |
100 |
/ |
80 |
|
BT30-M16-45L |
16 |
30 |
33 |
45 |
/ |
30 |
|
BT30-M16-60L |
16 |
30 |
33 |
60 |
f |
40 |
|
BT30-M16-100L |
16 |
30 |
32 |
100 |
/ |
80 |
|
BT40-M8-70L |
8 |
15 |
17 |
70 |
f |
45 |
|
BT40-M8-100L |
8 |
15 |
17 |
100 |
/ |
75 |
|
BT40-M8-150L |
8 |
15 |
22 |
150 |
50 |
125 |
|
BT40-M8-200L |
8 |
15 |
22 |
200 |
70 |
175 |
|
BT40-M10-70L |
10 |
19 |
20 |
70 |
/ |
45 |
|
BT40-M10-100L |
10 |
19 |
25 |
100 |
f |
75 |
|
BT40-M10-150L |
10 |
19 |
25 |
150 |
/ |
125 |
|
BT40-M10-200L |
10 |
19 |
31 |
200 |
70 |
175 |
|
BT40-M12-70L |
12 |
24 |
26 |
70 |
/ |
45 |
|
BT40-M12-100L |
12 |
24 |
32 |
100 |
/ |
75 |
|
BT40-M12-150L |
12 |
24 |
37 |
150 |
50 |
125 |
|
BT40-M12-200L |
12 |
24 |
68 |
200 |
175 |
|
|
BT40-M16-70L |
16 |
30 |
32 |
70 |
1 |
45 |
|
BT40-M16-100L |
16 |
30 |
36 |
100 |
30 |
75 |
|
BT40-M16-150L |
16 |
30 |
41 |
150 |
/ |
125 |
|
BT40-M16-200L |
16 |
30 |
46 |
200 |
70 |
175 |
